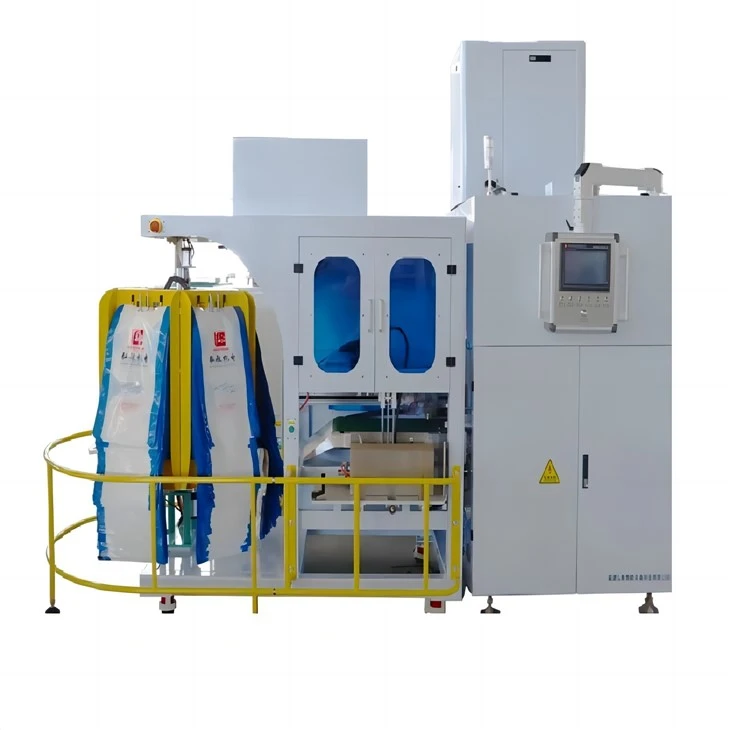

Cat Food Packaging Machine

Packaging Range: 2.5-10 kg
Packing Speed: 700-900 packs/hour
Packaging application scope: dog food, cat food, pet food, animal feeds, walnut kernels, peanuts, cashew nuts, rice, beans, seeds, grain, cat litter, and chemical granules, etc.
Power Supply: AC 380V, 6.5KW
Dimension: L2977*W3663*H2558mm
Guarantee Time: 1 year

Production process:

1. Feeding

2. Weighing

3. Bagging

4. Vacuum Pumping

5. Sealing

6. Finished Product Output

Explore More

automatic cat food vacuum packaging machine

Equipment Parameters

Number	Name	Technical Parameters
1	Packing Range	2.5kg-10kg flat bags and pseudo brick bags weighing
2	Bag size range	Front width 240 - 380mm, length 390 - 620mm; (For brick bags) The inner width of pre-sealing is greater than 190mm.
3	Packing Capacity	Approximately 600 - 900 bags/hour (Note: about 600 bags/hour for 10kg bags, and about 800-850 bags/hour for 2.5 - 5kg bags)
4	Bag storage capacity	The loop-handle bag storage	Approximately 700 bags
		The handleless bag storage	Approximately 600 bags
5	Power Supply	AC380 Three-phase-five-wire system,6.5KW
6	Air Consumption	0.6MPa,1m³/min
7	Working Temperature	0-40℃,Relative Humidity：＜90%
8	Equipment Dimensions (LxWxH)	2977×3663×2558mm

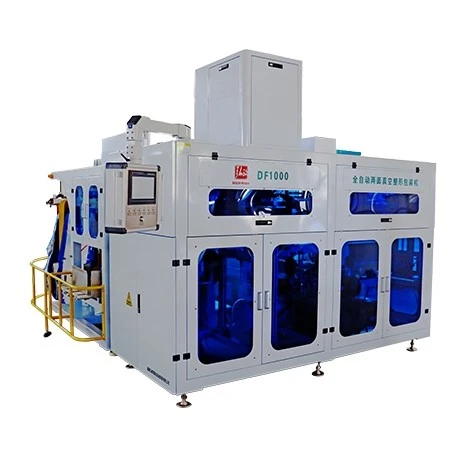

automatic doypack pouch packaging machine

Automatic Pillow Bag Vacuum Packaging Machine features an oversized bag magazine with a capacity exceeding 600 bags, this machine dramatically reduces the need for frequent reloading. This translates directly to longer uninterrupted runs, significantly higher throughput, and enhanced overall productivity for your 10kg packaging line.

Effortlessly adapts to prevalent bag styles in the market. It seamlessly handles two-loop bags, loopless bags, and pseudo-six-sided M-type bags using a highly efficient single-step forming and sealing process. Minimize downtime associated with bag type changes.

Integrated intelligent systems provide real-time self-diagnosis with clear alarm notifications. Crucially, it automatically detects and rejects defective bags – including those with sealed openings, tears, or failed opening attempts – ensuring only perfectly formed and sealed packages proceed down the line, guaranteeing consistent output quality.

Switching between different rice brick sizes is remarkably fast and simple. Operators can achieve rapid changeovers primarily by selecting the corresponding pre-set recipe on the control system. (Note: Adjustment of the bag magazine width is required manually when switching to/from loopless bag types).
