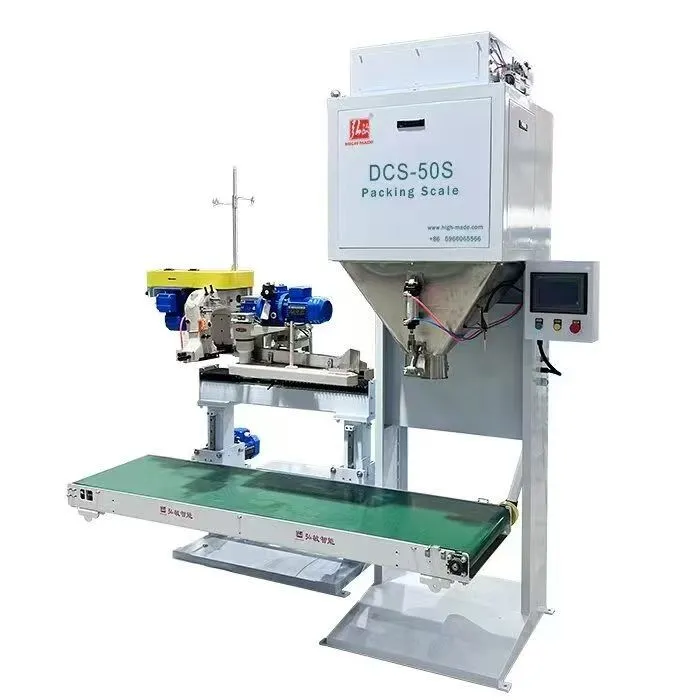

This Semi-Auto Dry Pet Food Packaging Machine is precisely tailored to meet the packaging needs of bulk materials across multiple industries, including grain, pet feed, chemical engineering, and food particles.

Equipment Parameters

Model

DCS-50S

Certification

CE certificated

Packing Capacity

500-800 bags/hour

Packing Range

5-50KG

Power Supply

AC 380V, 50HZ, 2.5KW

Packing Accuracy

±0.1

Equipment Dimensions (L*W*H)

2875mm*1012mm*2577mm

Production process

1. Feeding

2. Weighing

3. Bagging

4. Sewing / Sealing

5. Finished Product Output

Amid the wave of industrial automation production upgrading, the accuracy and efficiency of quantitative packaging directly determine an enterprise's production capacity and cost control.

With its intelligent design and stable performance, it serves as a core piece of equipment for enterprises to achieve automated transformation of the packaging process, helping to enhance product standardization and market competitiveness.

The equipment adopts a high-precision weighing sensor that is deeply integrated with a high-definition touch screen controller. The operation interface is intuitive and clear, allowing one-click setting and modification of parameters such as packaging weight and speed.

Even novice operators can master it quickly, significantly reducing training costs. Built-in high-performance adaptive software is equipped with functions of automatic drop correction, over-tolerance alarm, and fault self-diagnosis. It conducts real-time error calibration during dynamic weighing, and triggers timely early warning and shutdown in case of abnormalities, thus ensuring packaging accuracy and continuous operation of the production line.

DCS-50S woven bag quantitative filling packing machine

heavy duty pet-dog food-cat treats packaging machine

The product boasts comprehensive data management capabilities. It can automatically count the number of packaged bags and cumulative packaging volume, supports real-time printing and multi-interface data communication, and can seamlessly connect to the enterprise's MES system to achieve production traceability, providing accurate data support for scheduling decisions.

Its wide quantitative range of 5-50Kg, combined with an automatically liftable conveying and sewing machine, is suitable for various materials such as granules, powder, and flakes. With a packaging speed of 500-800 bags per hour, it realizes integrated and efficient operation of weighing, conveying, and bag sewing.

The Semi-Auto Woven Bag Packing Scale adopts imported pneumatic actuators, featuring stable and noiseless operation as well as easy maintenance. Its oil-free lubrication design prevents material contamination. Components in contact with materials are made of imported stainless steel, complying with food-grade hygiene standards, and are corrosion-resistant and durable.

It has superior core parameters: power supply of AC 380V, 2.5Kw; air consumption of 0.4~0.6MPa. It combines reliability and environmental-friendliness, and is supported by comprehensive pre-sales and after-sales services to escort production throughout the entire process.
