Wet Wipes Production & Packaging Line
The whole production line is composite of two parts: converting machine + packaging machine.
Converting machine:
(1) Nonwoven loading stations
(2) Auto Splicing system
(3) Multi-dimensional folding device
(4) On-line liquid supply (wetting system)
(5) Tissue cutting system
(6) Auto stacking system
(7) Joints detection &rejection system
Packaging machine:
(1) Servo Driven infeed system
(2) Double labeling system
(3) Double packing system
(4) Auto splicing system
(5) Auto die-cutting system
(6) CPU Controlled system
(7) Multi-dimension bag former
(8) Trimming unit
(9) Reciprocating sealing system
Product Features
1. Higher speed at 75-80packs/min
2. Full servo + CPU control system
3. Up to GMP/FDA standard in terms of hygiene & operational safety and running noise
4. It is able to run non-stop 24 hours with <1% wastage rate
5. It is of higher accuracy with wetting deviation +-3g
6. It is easy to handle with all types of biodegradable materials
Product Video
Technical Parameters:
Model | HM-BT20 | |
Capacity Speed | Max 8000pcs/min on converting part; | |
Max 80packs/min on packaging part | ||
Total Power | 20KW | |
Power Supply | 3 phase 5 wires, AC380V±5%,50HZ±2% | |
Machine Noise | ≤64.9dB（A） | |
Air Supply | 0.6-o,8 MPA | |
Air Consumption | 600L/min | |
Machine Dimensions | 21500×3800×2300（L*W*H） | |
Machine Weight | About 15000kgs | |
Load Bearing Requirement | >2tons/㎡ | |
Monthly capacity calculation
| ||
Product Specification | ||
Tissue Size Range | Diversified ( Length and width adjustable on the touch screen) | |
Folding Ways | “Z” pop-up or non pop-up/”N” fold | |
Open Tissue Size (LxW) | (100-220)x(160-320) mm | |
Folded Tissue Size (LxW) | (100-220)x(80-110) mm | |
Packing Size(LxWxH) | (160-350)x(90-110)x(20-100)mm | |
Labeling Size (LxW) | (50-150)x(30-80)mm | |
Window Punching Size (LxW) | (10-70)x(5-50)mm | |
Liquid Added Range | 0-32ml | |
Mechanism Parameters | ||
Material Loading Device: | Two independent rolls on one core shaft （20rollsaltogether） | |

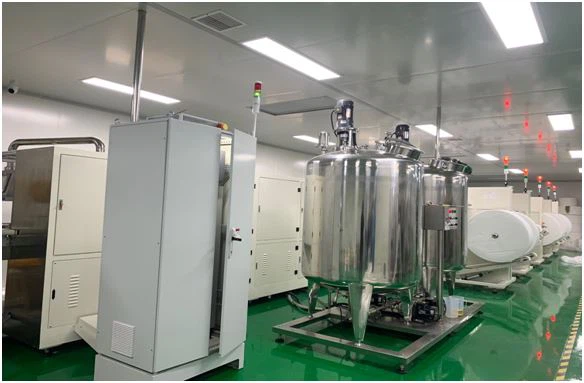

Wetting System | Two stainless steel water tank (600Lx2)with agitator (Preset full-auto continuous & circular stirring system); Quantitative wetting=the amount of sprayed liquid can be precisely regulated | |
Moisture Scope: | 200-500% of liquid volume Accuracy -+3g | |
Water Tank Volume | 600L+600L | |
Cutting System | Synchro rotary cutter | |
Joint Detecting System | Online detecting | |
Interface Touch Screen System for Operation | Multi-national languages in display (Chinese/English…) Production data recording and storage function Products SKU information recording function | |
Stacking System | Servo driven motor Stacking counts: 30-120 sheets set on touch screen | |
In-feed System | Servo driven motor | |
Counting System | Auto-counting ( operation interface setting) | |
Labeling System | Double labeling/ Auto-change over | |
Film Feeding System | Double film rolls/ Auto-change over | |
Packaging System | Reciprocating & Full servo motor control | |
Liquid-adding System Specification
| ||
Water Tank Volume | 600L; 2 sets | |
Material | SUS 304 | |
Agitate Motor | 1HP 380vAC 50Hz， 2sets | |
Return Liquid Pump | 0.5HP 220/380vAC 50Hz, 1set | |
Supply Liquid Pump | 0.5HP 220/380vAC 50Hz, 1set | |
Liquid Filter | 80 mesh double filters system | |
Liquid Level Detection | Electronic detection, automatic control of liquid level | |
Flow Detection | Flow meter control, flow range: max 32L/min | |
Disinfect Interface | Reserve/ISO snap ring | |
Key Mechanism Components | ||
Material of Components in Contact with Water | 0Cr18Ni9（SUS304) | |
Key Bearings | NSK (Japan)/NTN | |
CPU | Mitsubishi (Japan) | |
Synchronous Belt | Gates | |
Raw Material Specification | ||
Nonwoven | Material | Spun-lace nonwoven; air-through nonwoven; |
Gsm | 30-80gsm | |
Roll Width | Two independent rolls on one core shaft: Max 210mmx2 | |
Roll Dia | MAX Φ 1200mm | |
Core Dia | Φ76mm | |
Label | Material | Transparent/printed label |
Label Roll Dia | Max Φ380mm | |
Core Dia | Φ76mm | |
Packaging Film | Material | PET/PE BOPP;PET/AL/PE and all suitable material |
Film Roll Width | Max 450mm | |
Film Roll Dia | Max Φ400mm | |
Core Dia | Φ76mm | |
Moisture Scope: | 200-450% of liquid volume | |
Labeling System | Double labeling/ Auto-change over | |
Main features | ||
ü This machine works steadily and continuously, its suitable for the production of various kind of wet wipes/tissue of 30-120pcs/pack (Z/N FOLD).
ü CPU Controlling / Full servo driven system adopted. This makes for more stability, accuracy and faster speed.
ü The length and width are adjustable. Suitable for more types of products.
ü Roller cutting system: designing with upper and lower rolling cutter, it features low noise and durable performance.
ü Machine stops automatically when machine breaks down.
ü Wetting system adopts on-line injection making it accurate to inject liquid with a tolerance of 0.01ml/time.
ü Full automatic bag forming with high accuracy of eye track detecting for accurate sealing to ensure there is no blank edge or packing deformation.
ü Reciprocating functioning for cutting and end-sealing to ensure air-tight packing condition. ü Touch screen for easy parameters setting. ü Tissue size /packing size and speed adjustable on the touch screen. | ||
Product Details

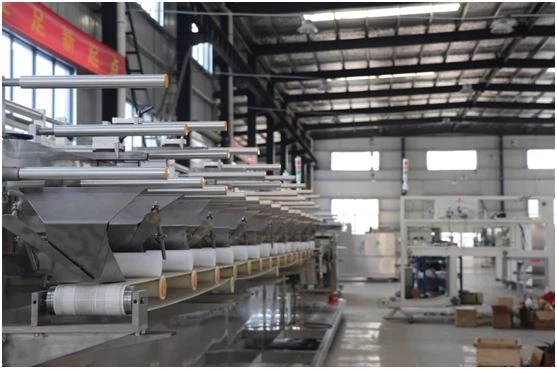

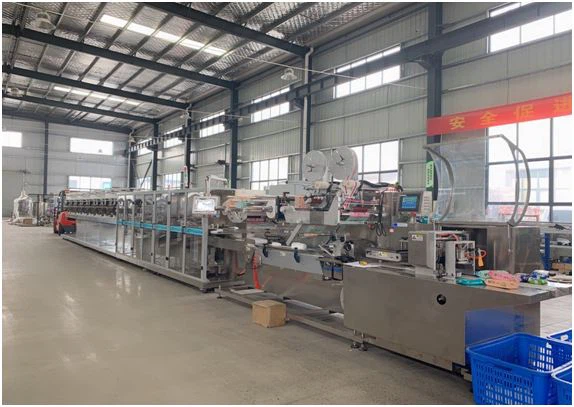

Front View
Rear View

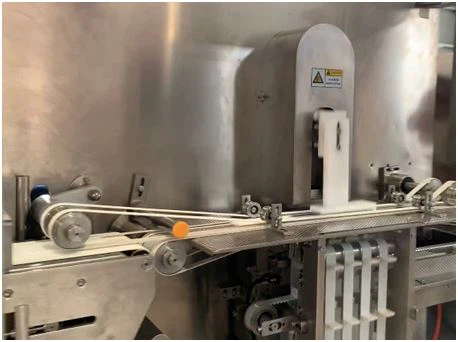

Folding Part (Multi-dimensions folding type)

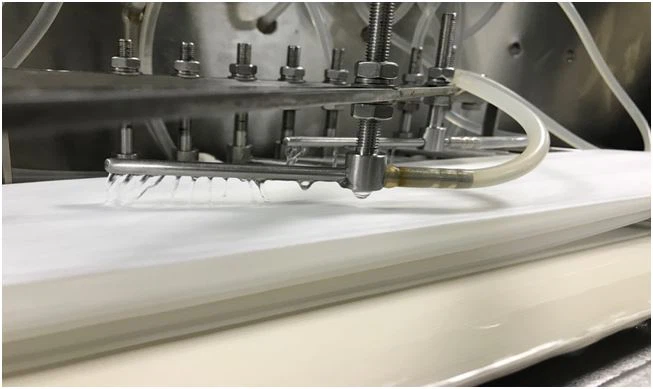

Quantitative Wetting Unit (Tolerance +3-5g)
High Speed Stacking System

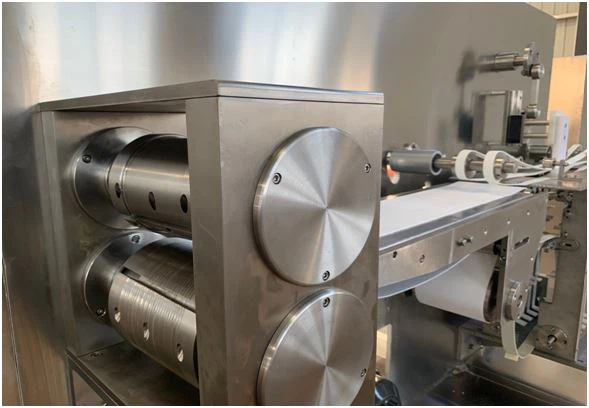

Cutting Part (Stainless Steel)
FAQ
Q: How many operators are required for this complete production line？
A: Maximum two operators, one for raw material loading, the other one for machine operation & in-process inspection；
Q: How Many containers does the equipment need?
A: 3 containers in total, 2x40HQ + 1x20GP
Q: What would be the size range of wipes？
A: Open wipes size (LxW): (100-260)x(150-320) mm; Folded wipes size (LxW): (100-260)x(80-110) mm
Q: What is the maximum sheets this machine can make?
A: The maximum final product height our machine can make is 135mm. ( E,g. 160wipes at 40gsm)
This machine can make standard 20~120 sheets in a pack. Or non-standard sheets whose height comes within 135mm.
Q: What types of folding ways can this machine do？
A: This machine can make multi-type folding: "N" "Z" "Z pop up" "W" "c".
Q: What's the distinguishing feature of your wetting system?

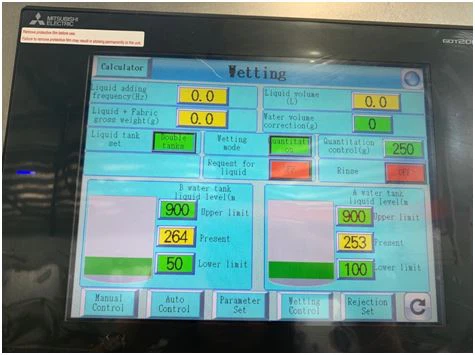

A: 1) Since our wetting system is controlled particularly by CPU, the wetting condition can be clearly monitored right from the screen.
2) You can see easily the water volume level of the two tanks.
3) Once the volume goes below the lower limit, the machine gives alarm automatically to notify you on the refill. (Yes you don't need to do the visual check on the tank every 20 minutes).
4) Automatic supplement from one to the other (when the firs tank runs out, the system will sense it and the second tank will supplement to the first tank automatically)
5) The other unique feature on our wetting system is that we have programed a liquid calculating formula into the machine.
Just put in your fabric specifications on the touch screen, the machine can automatically calculate the equivalent liquid volume amount as per your tissue length, width and gsm.
