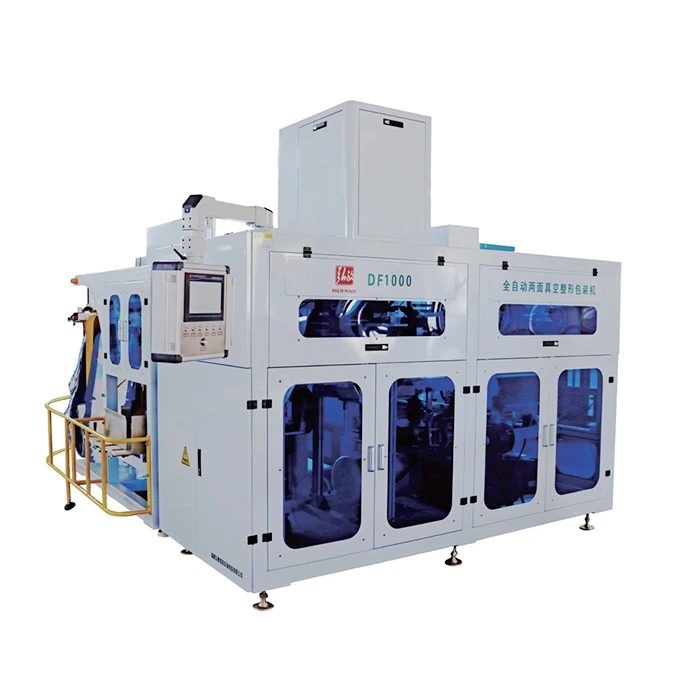

Our 5kg double-sided vacuum packaging machine features an ultra-large capacity bag library. The handle-style bag library can hold approximately 700 bags, while the non-handle library holds about 600, significantly reducing the frequency of bag changes during operation and substantially enhancing continuous work capability. The equipment offers wide compatibility, supporting double-sided handle bags, double-sided non-handle bags, and M-type pseudo-six-sided handle bags. It utilizes one-time sealing forming technology, ensuring stable shaping and precise alignment with mainstream market bag requirements, combining adaptability with high efficiency.
The machine's intelligent level leads the industry, equipped with a comprehensive self-diagnostic alarm system that monitors operational status in real time and promptly alerts to faults. It automatically and accurately rejects problematic bags in cases of issues like bag mouth adhesion, rupture, or failed opening, reducing manual sorting costs. Operation is more convenient and efficient: when switching production to different specification rice bricks, simply selecting the corresponding recipe is sufficient for a quick changeover. Only the non-handle bag library requires minor manual width adjustment, greatly shortening changeover time and enhancing production flexibility.
The machine supports personalized function expansion, allowing for the internal integration of a fiber laser inkjet printer or UV laser inkjet printer to meet product identification and marking needs. Preservation methods are flexible and diverse: it can maintain rice brick freshness through vacuum packaging, or switch to nitrogen or carbon dioxide flushing modes. This enables customized preservation solutions based on market distribution and transportation requirements, adapting to different sales scenarios and helping to extend product shelf life.
Designed specifically for 5kg rice bricks, this machine achieves a packaging speed of 800-850 bags/hour. It operates on an AC380V three-phase five-wire power supply with a reasonable power consumption of 6.5KW. Core components are sourced from renowned brands, such as Siemens PLCs (Germany), Schneider contactors (France), and Omron sensors (Japan), ensuring stable operation. It adapts to an ambient working temperature of 0-40°C and features a compact design that saves space, making it an ideal packaging solution that balances efficiency, stability, and practicality.
|
Number |
Name |
Technical Parameters |
|
|
1 |
Packing Range |
2.5kg-10kg flat bags and pseudo brick bags weighing |
|
|
2 |
Bag size range |
Front width 240 - 380mm, length 390 - 620mm; (For pseudo brick bags) The inner width of pre-sealing is greater than 190mm. |
|
|
3 |
Packing Capacity |
Approximately 600 - 900 bags/hour (Note: about 600 bags/hour for 10kg bags, and about 800-850 bags/hour for 2.5 - 5kg bags) |
|
|
4 |
Bag storage capacity |
The loop-handle bag storage |
Approximately 700 bags |
|
The handleless bag storage
|
Approximately 600 bags |
||
|
5 |
Power Supply |
AC380 Three-phase-five-wire system,6.5KW |
|
|
6 |
Air Consumption |
0.6MPa,1m³/min |
|
|
7 |
Working Temperature |
0-40℃,Relative Humidity：＜90% |
|
|
8 |
Equipment Dimensions(LxWxH) |
2977×3663×2558mm |
|
