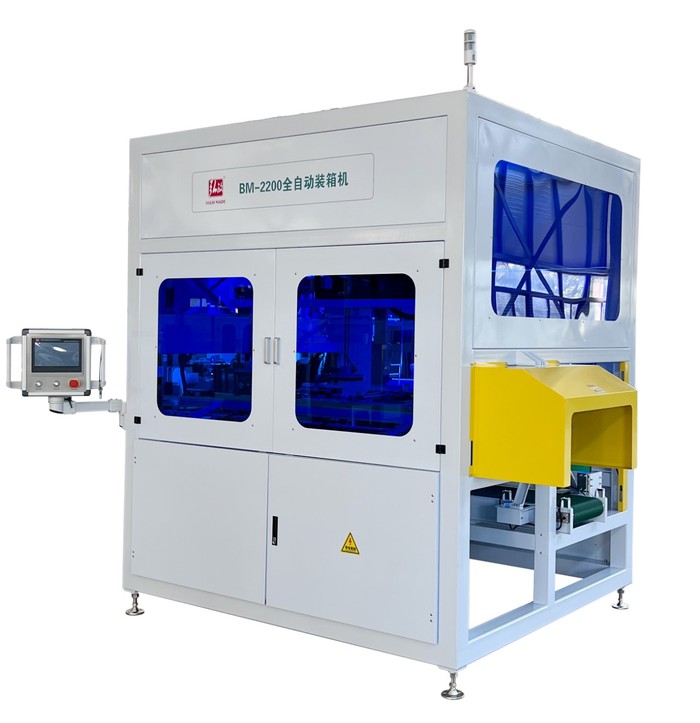

Automatic Carton Erecting Equipment
Automatic Carton Erecting Equipment is suitable for automatic encasement of various packaging materials. It has a wide range of packaging applications and can be matched with any packaging production line.
|
Number |
Name |
Technical Parameters |
|
1 |
Packing Range |
Flat shape 2.5-10 kg; Brick shape 2.5-5kg |
|
2 |
Packing speed |
1100 bags/hour |
|
3 |
Power Supply |
AC380 Three-phase Five-wire System,4KW |
|
4 |
Air Consumption |
0.6MPa, 0.2m³/min |
|
5 |
Working Temperature |
-10-40℃,Relative Humidity:＜90% |
|
6 |
Equipment Dimensions(LxWxH) |
1553*2465*2590.5mm |
|
7 |
Material Conveyor Height |
1000mm |
|
8 |
Carton Conveyor Height |
600mm |
Automatic Carton Erecting Equipment
Functional Features
The packaging has a wide range of applications and can be matched with any packaging production line.
Capture two packages at once, high work efficiency.
Dual mode operation mode, more flexible.
High degree of intelligence, using robots to grab and pack boxes.
Convenient operation and easy replacement of different specifications.
The electrical control box and pneumatic control box of the equipment adopt IP44 level.
It is relatively easy to maintain and repair, with a simple working principle and structure.
Our Service Processes
Pre-sales Consultancy
1
>>
Confirmation of order
2
>>
Production
3
>>
Multi-Channel Shipping
4
>>
Confirmation of receiving
5
>>
After-sale Services
6
Top Packing Machine Manufacturer in China
Send your inquiry and experience the transformative power it can have on your business.
