Semi-Auto Bean Vacuum Packing Machine

Semi-Auto Bean Vacuum Packing Machine
This Semi-Auto Bean Vacuum Packing Machine is designed for beans packaging, integrates efficiency, precision, and stability. It masterfully combines the flexibility of manual bag placement with the efficiency of automated processes, offering an ideal solution for boosting production capacity and optimizing packaging quality.

Applicable Material: suitable for the quantitative vacuum packaging of medium and small granular materials such as rice, beans, grains, seeds, feeds, peanuts, walnuts, cashew nuts, cat litter, and other granular materials.

Explore More

semi-auto gusset pouch vacuum packing machine for bean rice seeds peanuts walnuts cashew nuts cat litter

Equipment Parameters

Name	Equipment parameters
Packing Range	The flat shape：2.5-10KG The brick shape：0.3-5KG
Packing Capacity	The flat shape	260bags/hour
	The brick shape	For 0.3-1.25KG, the speed is approximately 400-500 bags/hour.
		For 1.25-5KG, the speed is approximately 280 bags/hour.
Packing Accuracy	±2g
Division Value	1g
Power Supply	AC380V, Three-phase-five-wire system,5KW
Air Consumption	0.6Mpa,0.36m³/MIN
Measuring method	High precision electronic quantitative scale
Working Temperature	0-40℃
Equipment Dimensions(LxWxH)	2095 13822372 mm

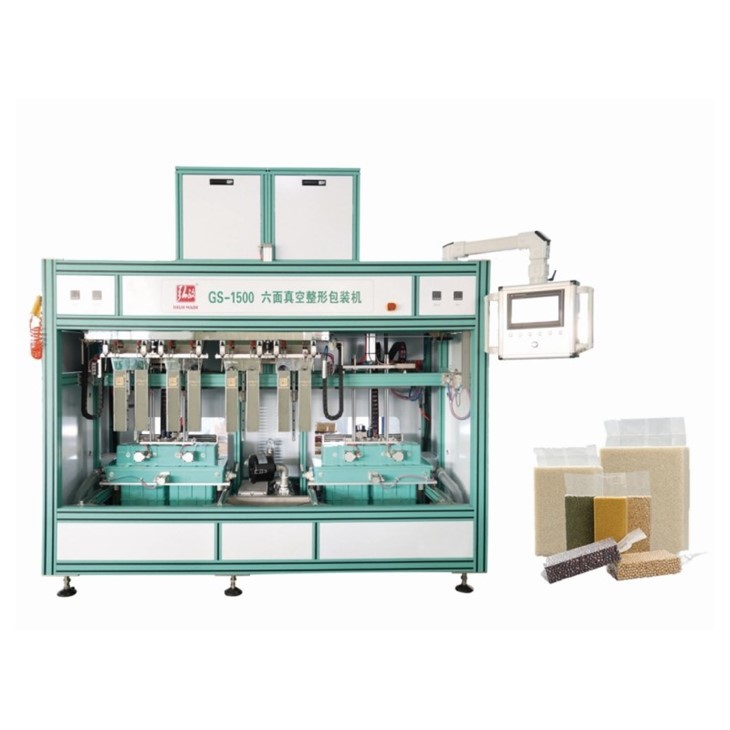

semi-auto Brick Shape Vacuum Bag Packing Machine for beans rice seeds nuts cat litter granules

◆ Manual bagging, with integrated functions of automatic weighing, automatic detection, automatic filling, automatic vacuum sealing, automatic shaping, automatic bag closing, and automatic finished product output.

◆ Industry-first four-scale weighing system. For small-size packaging (within 1.25Kg), dual-tube filling technology is adopted, enabling eight bags per cycle. This achieves faster cycle speeds and higher efficiency, with a capacity of over 1,600 bags/hour for small-size packages. For packaging of 2Kg and above, the capacity can reach 1,000 bags/hour.

◆ DC vibratory feeding technology ensures faster feeding speed and higher weighing accuracy.

◆ One-click changeover between different packaging specifications. Human-centric design, flexible use, and simplified operation.

◆ Internationally renowned electrical components ensure greater stability and reliability.

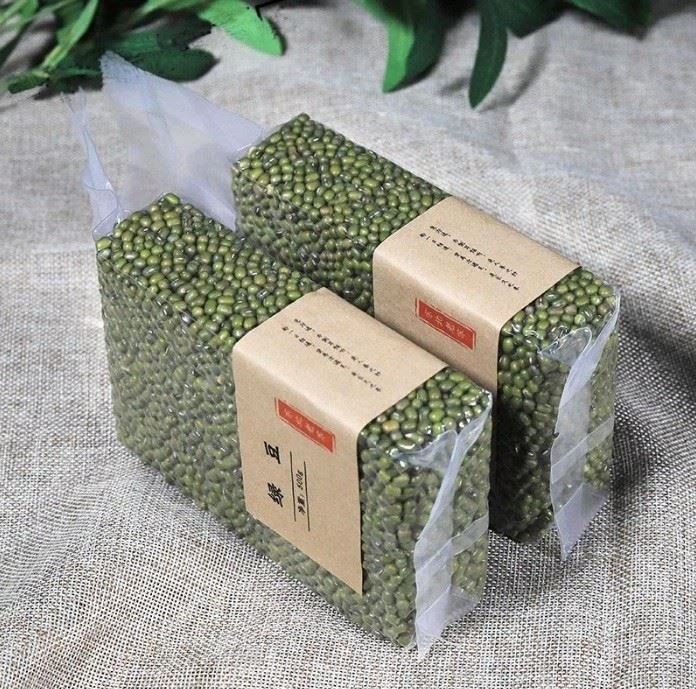

green beans brick-shaped vacuum packing machine

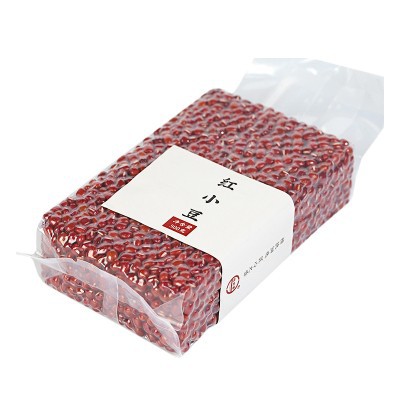

brick shape red bean vacuum packing machine

◆ Servo-controlled linear motion ensures smooth operation.

◆ Unique rear discharge mechanism enables orderly output of finished products, facilitating full automation of downstream processes.

◆ Quick-change mold tooling requires no adjustment.

Reach out to our sales team for more information!

Pre-sales Consultancy

Confirmation of order

Production

Multi-Channel Shipping

Confirmation of receiving

After-sale Services

packing machine factory

Top Packing Machine Manufacturer in China

Send your inquiry and experience the transformative power it can have on your business.

Send Inquiry Now

Brick Vacuum Packaging Machine For Rice Industry

Model	GS-1500
Packing Range	0.3-5.0kg
Packing Capacity	0.3-1.5kg 1500-1800 bags/hour(The front width of the rice brick is 60-112mm)
Packing Capacity	2.0-5.0kg 900-1100 bags/hour(The front width of the rice brick is113-245mm)
Power Supply	AC380V Three-phase-five-wire system,8.5kW
Air Consumption	0.6MPa,0.5m³/min
Working Temperature	0-40℃
Relative Humidity	＜90％
Measuring method	High precision electronic quantitative scale
Division Value	1g
Applicable Packaging Materials	Customized composite film packaging bag
Vacuum degree	Relative vacuum degree is -0.06~-0.08Mpa.
Equipment Dimensions(LxWxH)	252018902448mm(without material dividing port)
