Pillow Shape Vacuum Packing Machine

Packing Range: 2.5 kg–15 kg, two-side flat bags & semi-brick bags Bag Size Range: Front width ≤ 380 mm; length ≤ 620 mm Packing Speed: Approx. 650–700 bags/hour Power Supply: AC380V, 3-phase 5-wire system, 2.5 kW Air Consumption: 0.6 MPa, 3 m³/min Operating Conditions: Ambient temperature: 0 – 40 °C; relative humidity: < 90% Overall Dimensions (mm): 1769 × 1815 × 2252 mm

Pillow Shape Vacuum Packing Machine is specialized packaging equipment designed for 3-side seal pouches, stand-up pouches, Doypack pouches, pouches with zippers, and One-Way Valve Packages. It combines robust capacity with intelligent automation to deliver superior performance and versatility.

Explore More

DZX-A2 dual-station flat shape vacuum packing machine

Equipment Parameters

No.	Item	Technical Specification
1	Packing Range	2.5 kg – 15 kg, two-side flat bags & semi-brick bags
2	Bag Size Range	Front width ≤ 380 mm; length ≤ 620 mm
3	Packing Speed	Approx. 650 – 700 bags/hour
4	Power Supply	AC380V, 3-phase 5-wire system, 2.5 kW
5	Air Consumption	0.6 MPa, 3 m³/min
6	Operating Conditions	Ambient temperature: 0 – 40 °C; relative humidity: < 90%
7	Overall Dimensions (mm)	1769 × 1815 × 2252 mm

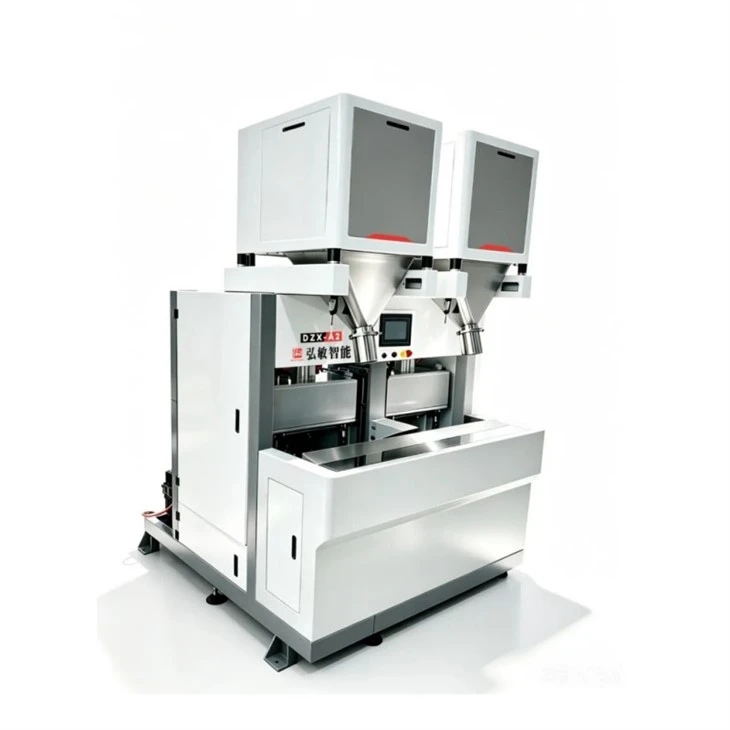

DZX-A2 dual-station flat shape rice vacuum packing machine

Key Functions & Features:

Pillow Shape Vacuum Packing Machine realizes the functions of automatic weighing filling, automatic vacuum pumping and shaping, and automatic sealing output of finished products;

High-precision vibration control mode, with each package error controlled within ±2g range;

Easy to operate and worry-free, only one button formula switching is needed to change production;

Vacuum packaging, long storage period, preservation and anti-corrosion, exquisite appearance;

Two workstations can operate independently or simultaneously, operated by one person or two people, operation is more convenient, labor intensity is low, and efficiency is high;

Using full touch screen and internationally renowned electrical components, the circuit cables of the entire equipment are all threaded through corrugated tubes, the electrical control box has IP44 level, and the equipment safety is more guaranteed.

pillow bag rice vacuum packing machine1
