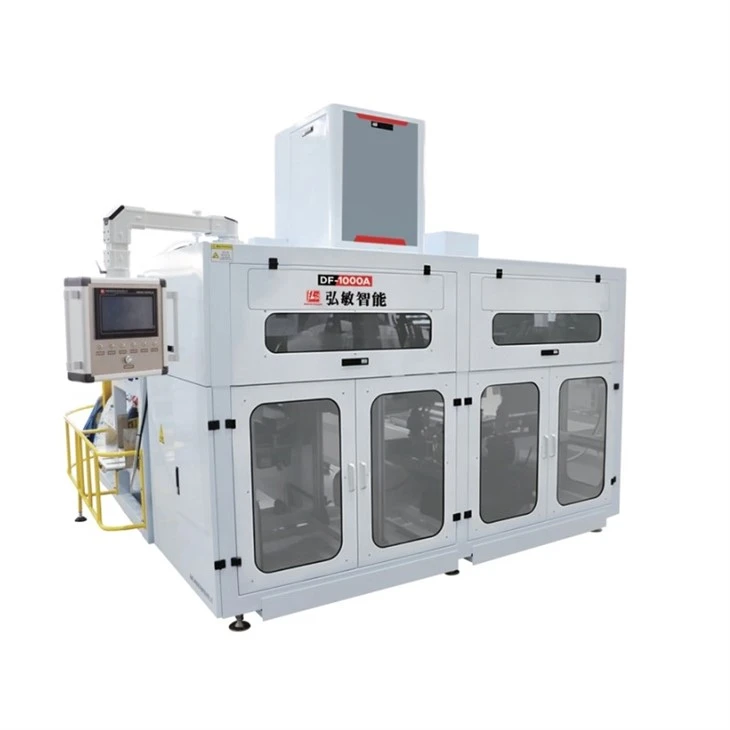

Pillow Shape Vacuum Packaging Machine is specialized packaging equipment designed for stand-up pouches, Doypack pouches, pouches with zippers, and One-Way Valve Packages. It combines robust capacity with intelligent automation to deliver superior performance and versatility.

pillow shape vacuum packaging machine

Equipment Parameters

Number	Name	Technical Parameters
1	Packing Range	2.5kg-10kg
2	Bag size range	For 3-side seal pouch, width 240 - 380mm, length 390 - 620mm; For side gusset bags, stand-up pouches, flat bottom pouches, the inner width of pre-sealing is greater than 190mm.
3	Packing Capacity	Approximately 600 - 900 bags/hour (Note: about 600 bags/hour for 10kg bags, and about 800-850 bags/hour for 2.5 - 5kg bags)
4	Bag storage capacity	The loop-handle bag storage	Approximately 700 bags
		The handleless bag storage	Approximately 600 bags
5	Power Supply	AC380 Three-phase-five-wire system,6.5KW
6	Air Consumption	0.6MPa,1m³/min
7	Working Temperature	0-40℃,Relative Humidity：＜90%
8	Equipment Dimensions (LxWxH)	2977×3663×2558mm

Key Functions & Features:

Pillow Shape Vacuum Packaging Machine features an oversized bag magazine with a capacity exceeding 600 bags; this machine dramatically reduces the need for frequent reloading. This translates directly to longer uninterrupted runs, significantly higher throughput, and enhanced overall productivity for your 10kg packaging line.

Adapts to prevalent bag styles in the market. It seamlessly handles 3-side seal bags, side gusset bags, stand-up pouches, flat bottom pouches, and other kinds of coffee bean bags using a highly efficient single-step forming and sealing process. Minimize downtime associated with bag type changes.

Integrated intelligent systems provide real-time self-diagnosis with clear alarm notifications. Crucially, it automatically detects and rejects defective bags – including those with sealed openings, tears, or failed opening attempts – ensuring only perfectly formed and sealed packages proceed down the line, guaranteeing consistent output quality.

Switching between different rice brick sizes is remarkably fast and simple. Operators can achieve rapid changeovers primarily by selecting the corresponding pre-set recipe on the control system. (Note: Adjustment of the bag magazine width is required manually when switching to/from loopless bag types).

pillow bag rice vacuum packing machine1
