Fully Automatic Carton Packing Machine

Packing Range: Flat shape 2.5-10 kg; Brick shape 2.5- 5 kg
Packing speed: 1100 bags/hour
Power Supply: AC380 Three-phase Five-wire System，4KW
Air Consumption :0.6MPa， 0.2m³/min
Working Temperature:-10-40℃，Relative Humidity:＜90%
Equipment Dimensions(LxWxH):1553*2465*2590.5mm
Matreial Conveyor Height: 1000mm
Carton Conveyor Height: 600mm

Fully Automatic Carton Packing Machine is suitable for automatic encasement of various packaging materials. It has a wide range of packaging applications and can be matched with any packaging production line.

Explore More

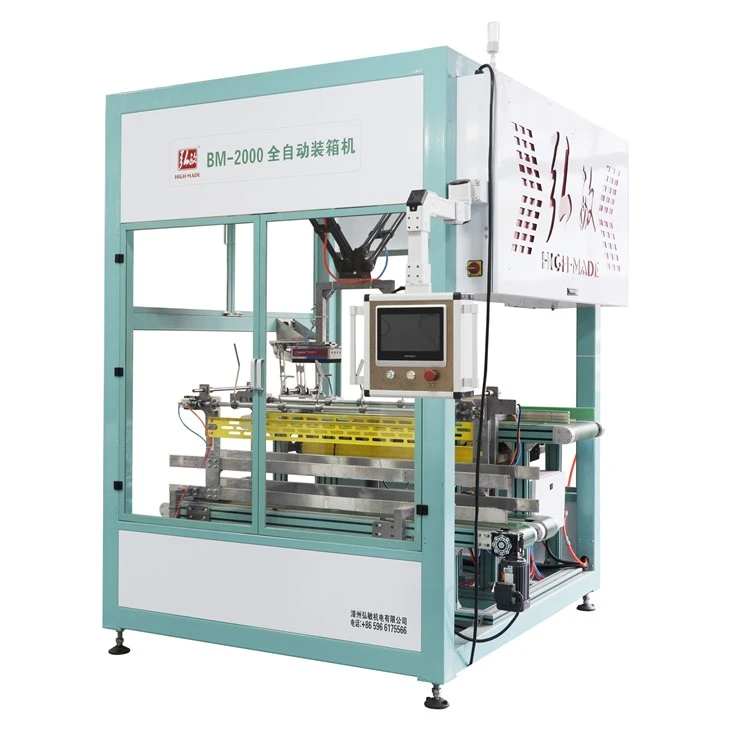

BM-2000 carton packing machine

Equipment Parameters

Number	Name	Technical Parameters
1	Packing Range	Flat shape 2.5-10 kg; Brick shape 2.5- 5 kg
2	Packing speed	1100 bags/hour
3	Power Supply	AC380 Three-phase Five-wire System,4KW
4	Air Consumption	0.6MPa, 0.2m³/min
5	Working Temperature	-10-40℃,Relative Humidity:＜90%
6	Equipment Dimensions(LxWxH)	155324652590.5mm

1. The packaging has a wide range of applications and can be matched with any packaging production line.

2. Capture two packages at once, high work efficiency. Dual mode operation, more flexible.

3. High degree of intelligence, using robots to grab and pack boxes.

4. Convenient operation and easy replacement of different specifications.

5. The electrical control box and pneumatic control box of the equipment adopt IP44 level.

6. It is relatively easy to maintain and repair, with a simple working principle and structure.

This machine offers good, clear, and fast sealing, a compact structure, smooth operation, and low noise.

Touchscreen human-machine dialogue, user-friendly interface, flexible and convenient operation.

Its self-correcting mechanisms and massive bag capacity deliver unparalleled production continuity, while servo precision ensures bag-to-bag consistency. The recipe memory system future-proofs your operation for evolving packaging requirements across diverse granular products.

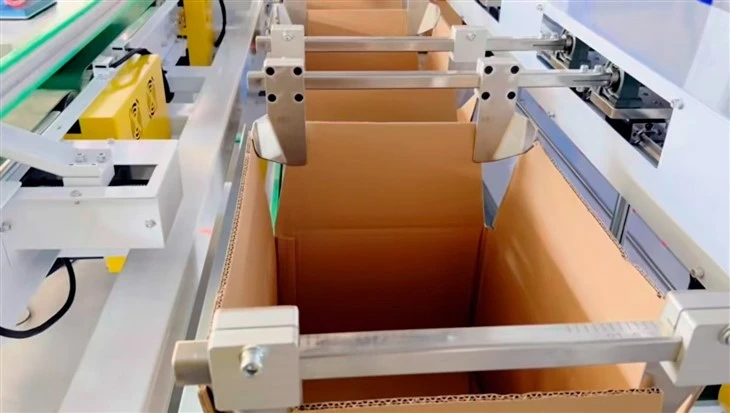

fully automatic carton filling and packing machine
